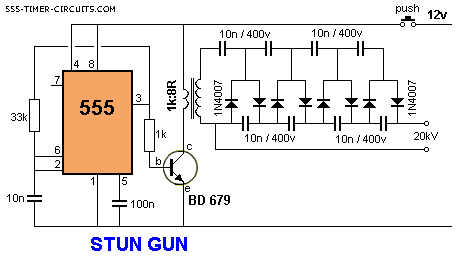

STUN GUN Circuit

This circuit produces a very high voltage and care must be used to prevent getting a nasty shock.  The transformer can produce over 1,000v and the 8-stage multiplier can produce up to 20,000v
