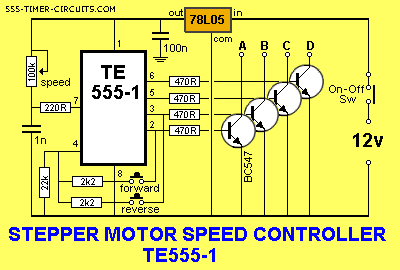

STEPPER MOTOR CONTROLLER TE555-1 Circuit

The direction of rotation is determined by the FORWARD and REVERSE switches and the motor does not take any current when a switch is not pressed.
