Metal Detector Circuit


A circuit that detects metal and also magnets.

Overview

When a magnet is brought close to the 10mH choke, the output frequency changes.

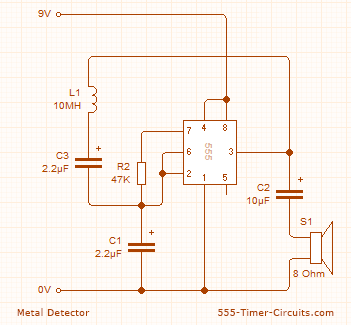

Schematic

Metal Detector Circuit

Parts List

1x - NE555 Bipolar Timer
1x - 47K Resistor (1/4W)
2x - 2.2F Electrolytic Capacitor (16V)
1x - 10F Electrolytic Capacitor (16V)
1x - 10F Electrolytic Capacitor (16V)
1x - 10mH Inductor
1x - 8 Ohm Speaker (1/4W)
1x - 9V Voltage Battery
