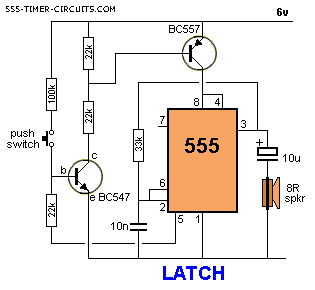

LATCH Circuit


This circuit is a LATCH and remains ACTIVE when the push-button has been pressed for an INSTANT and released.
